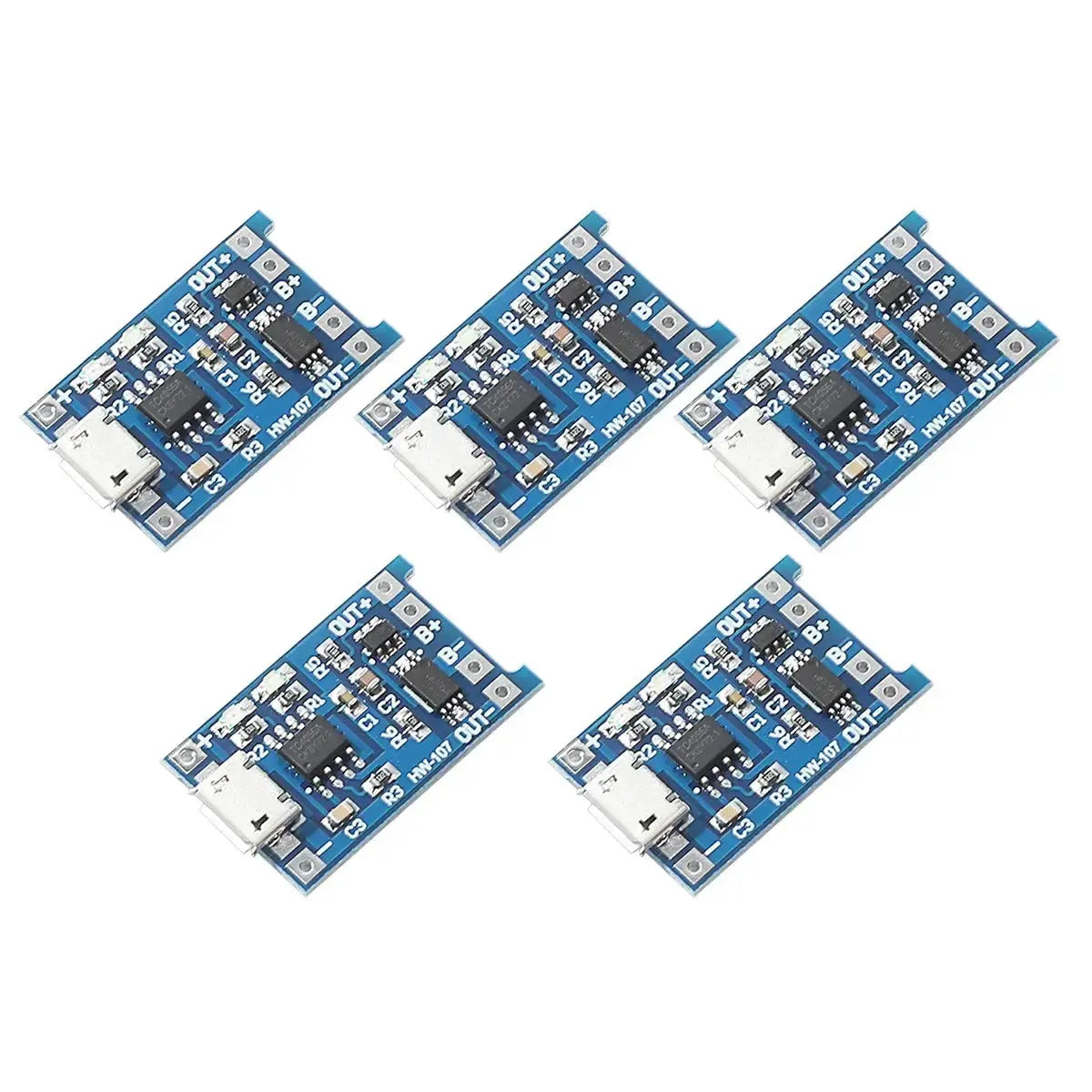

5pcs Battery Charging Board Micro USB TP4056 Lithium Battery Charger Module Charging Board with Protection 5V 1A Dual Functions

Understanding the TP4056 Battery Charger Module

Specification:

Charging method: linear charge 1%

Charging current: 1A adjustable

Charging accuracy: 1.5%

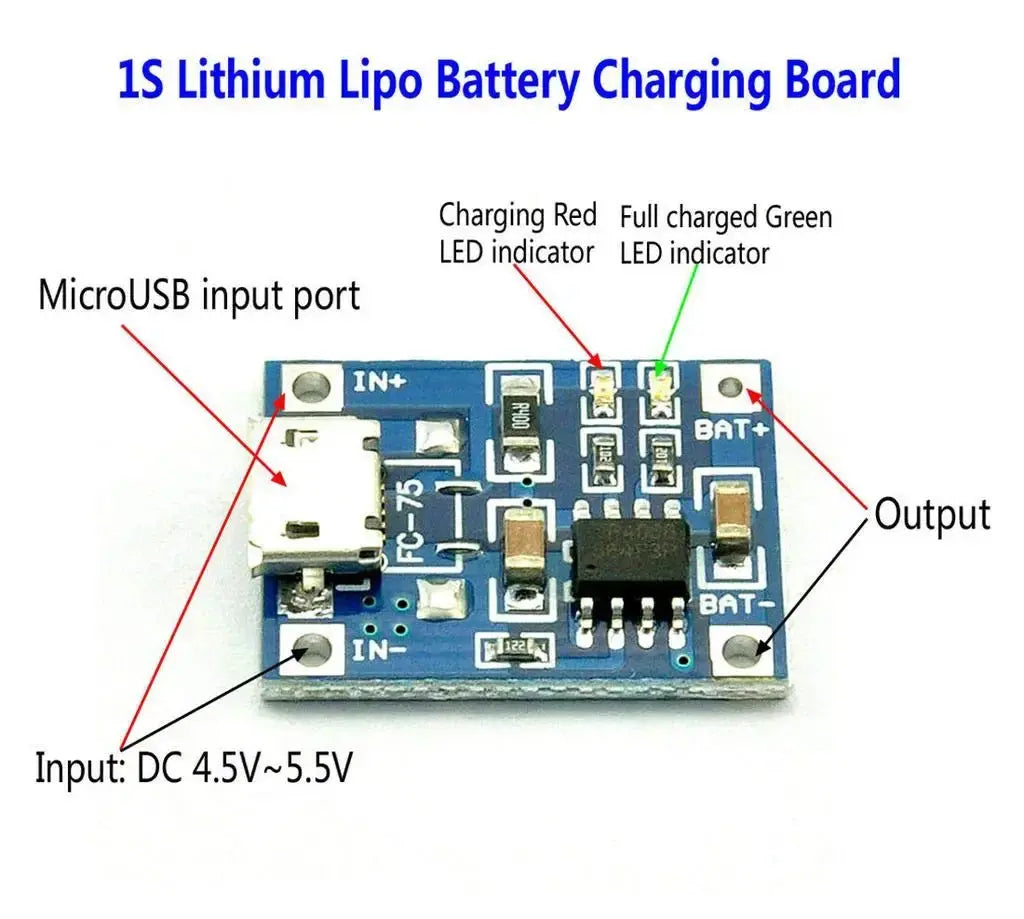

Input voltage: 4.5V-5.5V

Full charge voltage: 4.2V

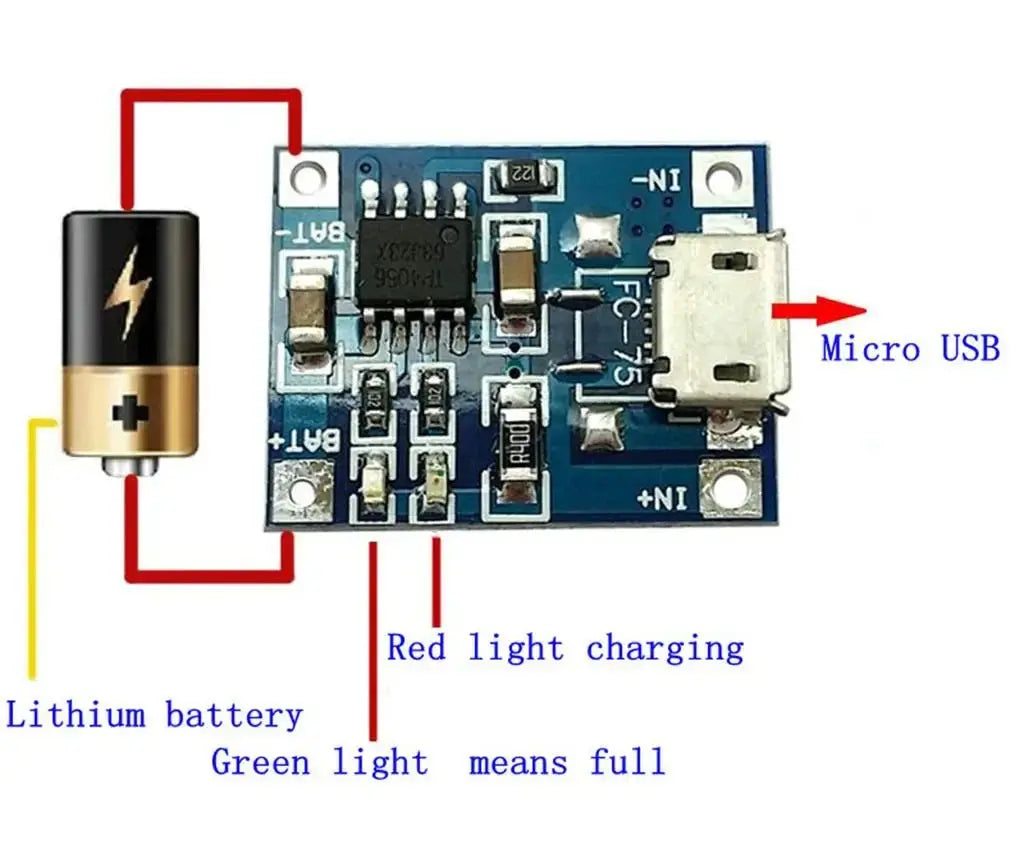

Charging indicator: Red charging / Green full charge

Input Interface: Micro USB

Wire connection: cannot be reversed

Weight: 10g

Operating temperature: -10 ℃ to + 85 ℃

Size: 25 x 19 x 10mm/1.0 x 0.7 x 0.4inch

Current Regulation:

RPROG (k) - IBAT (mA)

30k - 50mA

20k - 70mA

10k - 130mA

5k - 250mA

4k - 300mA

3k - 400mA

2k - 580mA

1.66k - 690mA

1.5k - 780mA

1.33k - 900mA

1.2k - 1000mA

Reliable Charging for Lithium Batteries

The Battery Charger, featuring a TP4056 module, provides reliable charging for lithium batteries. This micro USB charging board is designed to ensure optimal performance and longevity of your batteries. With a 5V, 1A input, it efficiently charges your devices while protecting them from overcharging. This is essential because overcharging can significantly reduce battery life, but with the TP4056, users can feel confident that their batteries are charged safely and effectively.

Enhanced Protection Features

One of the standout features of this battery charger is its built-in protection mechanism. It prevents over-voltage, under-voltage, and short circuits, making it a safe choice for DIY projects and electronic applications. The protective capabilities ensure that the charging process is smooth and secure, so even beginners can use it without worrying about damaging their batteries or devices. This reliability makes it suitable for various applications, including portable devices and hobby electronics.

Easy Implementation and Versatility

The TP4056 Battery Charger module is not only efficient but also straightforward to implement. Its compact design allows for easy integration into various projects. Whether you’re a hobbyist building a custom device or a professional seeking efficient charging solutions, this module caters to diverse needs. Additionally, the micro USB input ensures compatibility with multiple power sources, making it easier than ever to keep your lithium batteries charged and ready for use, which is essential for maintaining device functionality.
